Architecture

Disclaimer (by sven-n): This is not a perfect architecture, if such an architecture exists anyway. However, it makes sense to me for this purpose, as an enterprise business application developer. I tried to make it flexible and I hope it's not too complicated.

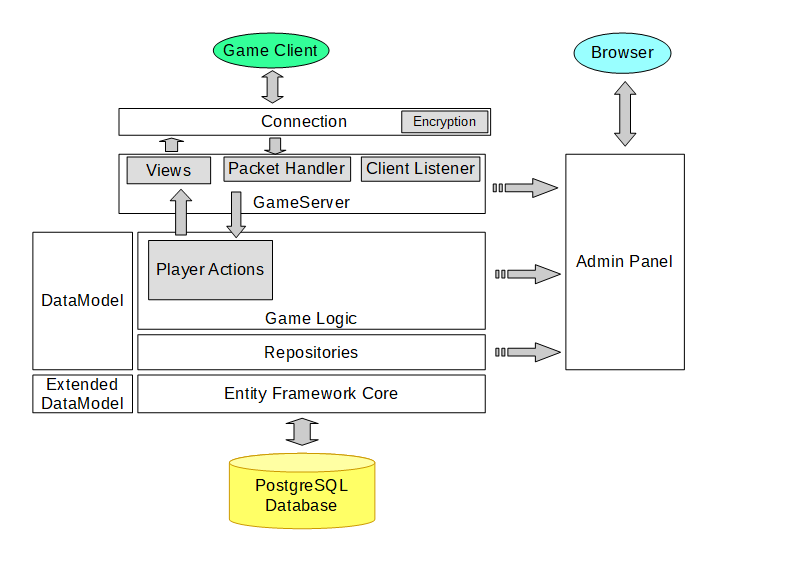

For the big picture, have a look at the architecture overview:

Architecture overview

There are interfaces for the interoperability between the different "servers" or subsystems in MUnique.OpenMU.Interfaces.

Communication between game client and server​

The network communication between game client and game server takes place through the Connection class. MUnique.OpenMU.Network contains everything required to connect from and to a game server using the MU Online network protocol. It also contains the message structs of the messages in MUnique.OpenMU.Network.Packets.

Client → Server​

When data is received from the game client, it is forwarded to the packet handlers in the namespace MUnique.OpenMU.GameServer.MessageHandler. Every handler is an implementation of an IPacketHandlerPlugIn.

These message handlers parse the data packets and then call the player actions in MUnique.OpenMU.GameLogic.PlayerActions, which have no knowledge of the packet structure or how the communication took place.

Server → Client​

The other way — data sent to the game client — is done by views (MUnique.OpenMU.GameServer.RemoteView). These views use the Connection class to send the data in the specified protocol. The game logic has no knowledge about this protocol and just works with the view interface plugins.

Benefits of this architecture​

The game logic itself does not know how the player actions are triggered or how the "view" looks like.

Instead of working with the network, there could be an implementation of view plugins which is literally a graphical user interface. Also, instead of calling the player actions by packet handler plugins, a user interface could call them instead. So this project could be a base for a (non-MU) game client which could then also support multiplayer and co-op with the existing server components.

All plugins are configurable over the admin panel. They can be activated or deactivated, so they can be replaced by extended or modified versions.

It is also possible to offer different protocols working on the same game world, by implementing multiple view and packet handlers with different client version attributes. Each game server can have multiple TCP listeners bound to separate TCP ports for different client versions, too.

Data access​

The access pattern is mainly this:

  • At server start, the game configuration is loaded.
  • When a game client logs in, its account is loaded.
  • During the game, the account data is saved at specific points and in a time interval.

Design goal​

It should be possible to support multiple different databases, also NoSQL ones, without changing the game logic. For this purpose we don't just use SQL and database-specific code in the game logic.

The access patterns keep this in mind: instead of a lot of single calls to a lot of different repositories in the game logic, one big call should be done. For example, if we want to use a document based database, an account could be one document and the game configuration as a whole could also be one document.

Abstractions​

To accomplish the design goals, the game logic (and other parts) use abstractions, repositories, to access data. These abstractions are located in the MUnique.OpenMU.Persistence namespace.

We use a context-based approach to access data: the GameConfiguration is loaded through a GameConfigurationRepository while "using" a context, and each connected player uses its own player context to load its Account.

When saving an account, we actually save its context. The context then takes care that every required change is done at the database. When accessing or creating new persistent objects, the context needs to be "in use" on the current thread, because the actual context implementation may need to track these objects. It takes care of a lot of things, e.g. creating new objects. Contexts can be created with the PersistenceContextProvider.

Current implementation and supported database​

At the moment the persistence layer is implemented by MUnique.OpenMU.Persistence.EntityFramework, which uses Entity Framework Core and PostgreSQL as database.

Future​

Because the data model is pretty complicated (which is required if the configuration should be that flexible), a full relational model on a database is probably not the best thing to do, performance wise.

Currently, we use an approach to load the game configuration or account with just one big dynamically generated query which gives us the data as JSON. That's surprisingly fast — the query to load the really complex game configuration finishes in about 1.5 seconds.

If there is a problem in the future, we could go further and mix relational tables with JSON columns, or fully switch to a document based database.

Further reading​

The deeper technical documentation lives next to the code in the repository:
